Small Home Freeze Dryer Machine

When our technical support team works with overseas clients preparing to install the LANPHAN HFD-5S Small Home Freeze Dryer Machine, we do not focus on commercial hype. Instead, we analyze the micro-climate of your processing facility. Because this model relies entirely on an air-cooled refrigeration system rather than external cooling water lines, the physical environment of your room directly dictates the crystallization speed on the 5 material trays. To secure the rated 4 kg/24H water capture performance, the work temperature must keep between 10°C and 35°C and the relative humidity below 70%.

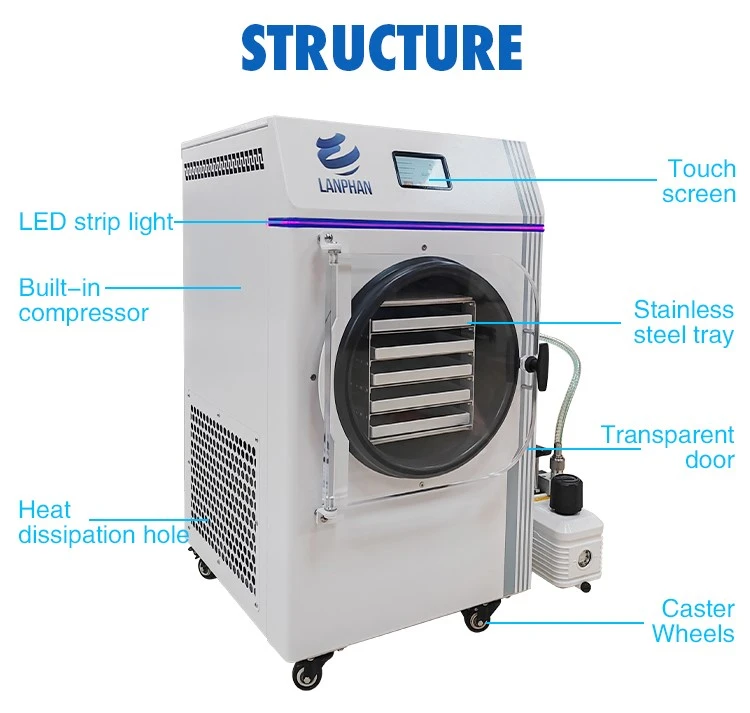

A common concern among purchasing agents is whether a 1300W machine can sustain an ultimate vacuum level below 2 Pa during long, continuous production runs. This stability depends on the thermal dynamics inside the 304 stainless steel chamber. The HFD-5S Small Home Freeze Dryer Machine utilizes an optimized 0.5 square meter freeze-drying area split across trays measuring 195*455mm. This specific surface-to-volume ratio allows the -40°C cold trap to lock away sublimated vapors instantly, preventing them from drifting into the vacuum pump. If you are processing organic samples with volatile oils, keeping the ambient air free of conductive dust, explosive gas mixtures, or corrosive elements is mandatory to protect the internal electrical circuit boards from short-circuiting over a 5-year depreciation cycle.

From an integration standpoint, the mechanical footprint of the machine is designed to limit setup friction. The industrial vacuum pump delivers an extraction rate of 2-4 L/S, working quietly below 60 dB. This low acoustic footprint eliminates the need for expensive soundproof enclosures, allowing operators to work safely alongside the equipment. When planning your logistics layout, remember that the crate dimensions are 630*800*1280mm with a gross weight of 109kg. Ensuring clear corridor clearance from your loading dock to the laboratory floor will ensure a flawless, zero-damage deployment on delivery day.
