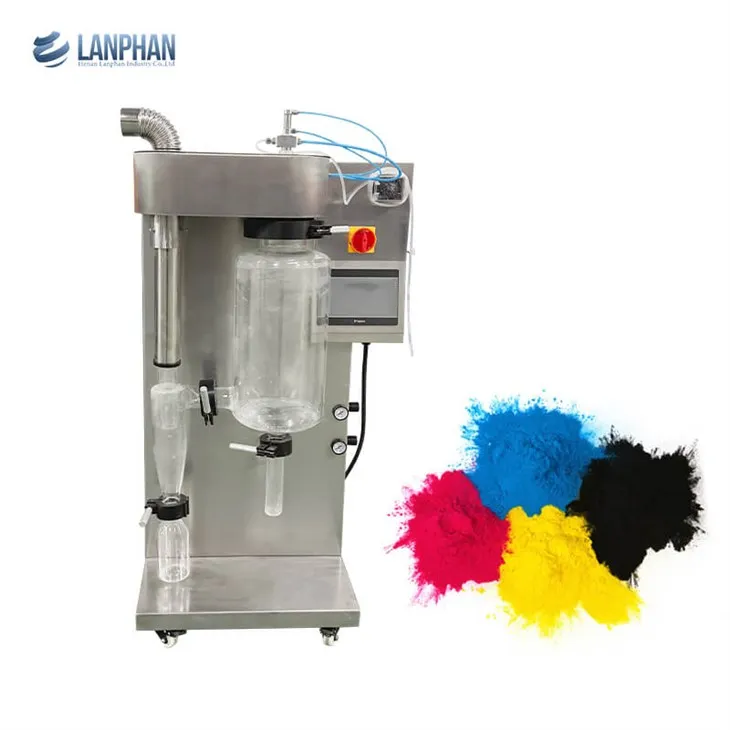

Laboratory spray dryer
Evaporated water volume: 1500mL/H ~2000ml/h.
Feeding method: peristaltic pump.
Minimum feed volume: 50mL
Maximum feed volume: up to 2000mL/H
| Product Model | LPSD-2G Laboratory spray dryer |
| Air inlet temperature control | 30~300℃ |
| Air outlet temperature control | 30~150℃ |
| Evaporated water | 1500ml/h~2000ml/h |
| The largest feed rate | 2000ml/h |
| Feeding way | Peristaltic pump adjustment |
| Electric heater | 3.5KW AC220V |
| Draught fan | 0.55KW |
| Maximum quantity of wind | 5.6 m3/min |
| Maximum air pressure | 1020 Pa |
| Air compressor | 1.2 KW, the largest gas production 4.2 m3/h |
| Nozzle diameter | 1.00 mm /0.04inch(optional) |
| Package dimension (L*W*H) | 600*700*1200(mm) |
| Weight | 125KG(275.58lbs) |
Laboratory Spray Dryer Details

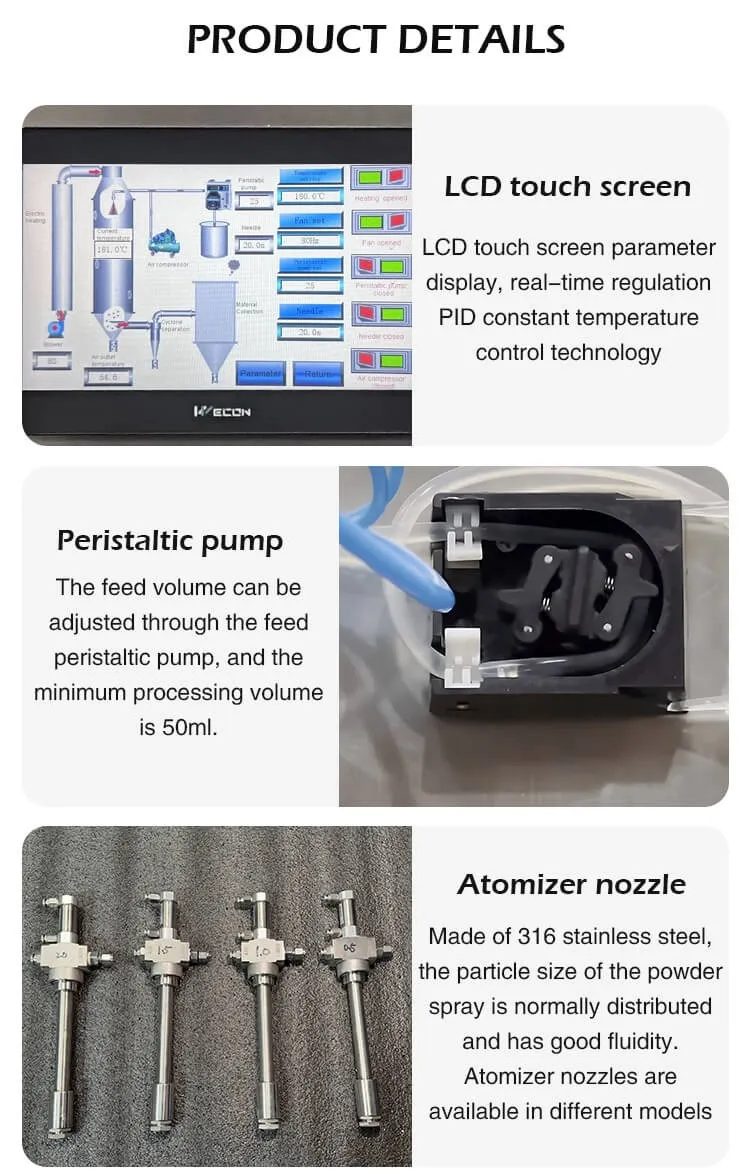

1.LCD touch screen:LCD touch screen parameter display, real-time regulation PID constant temperature control technology.
2.Peristaltic pump: The feed volume can be adjusted through the feed peristaltic pump, and the minimum processing volume is 50ml.
3.Atomizer nozzle: Made of 316 stainless steel, the particle size of the powder spray is normally distributed and has good fluidity. Atomizer nozzles are available in different models.

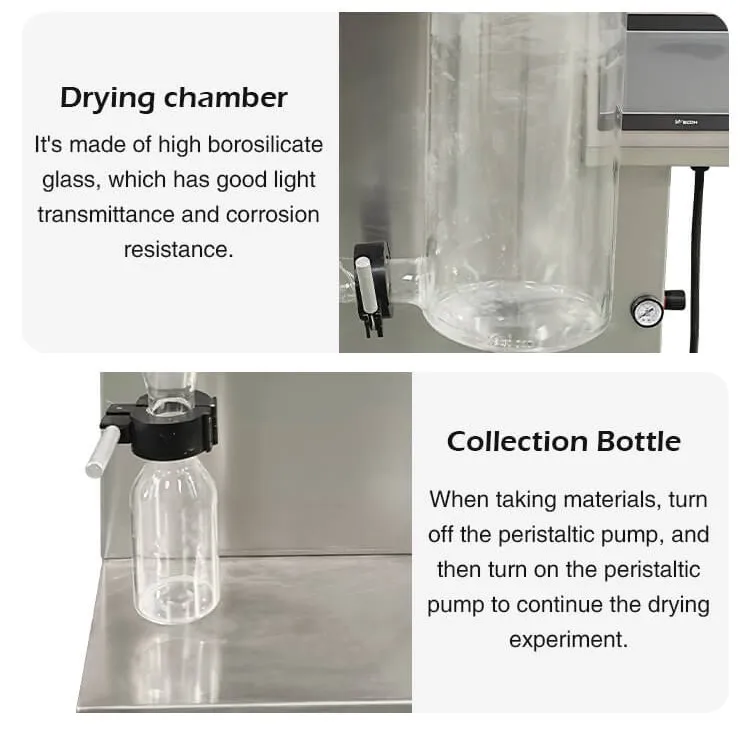

4.Drying chamber: It's made of high borosilicate glass, which has good light transmittance and corrosion resistance.
5.Collection Bottle: When taking materials, turn off the peristaltic pump, and then turn on the peristaltic pump to continue the drying experiment.
The spray dryer is mainly suitable for spray drying of suspended liquids and high-viscosity materials or solid-content liquids.
Chemical industry: battery raw materials, basic dyes and pigments, dye intermediates, compound fertilizers, catalysts, sulfuric acid agents, amino acids, white carbon black, etc.
Plastic resin: AB, ABS emulsion, urinary formaldehyde resin, dense rubber (urea) formaldehyde resin, polyethylene, polyvinyl chloride, etc.
Food industry: fat-rich milk powder, cocoa milk powder, milk substitute powder, animal blood powder, egg white (yellow) whole egg powder, etc.
Food and plants: oats, chicken juice, coffee, instant tea, flavored meat, protein, soybean, peanut protein, etc.
Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder, etc.
