This compact high-pressure small autoclave sterilizer utilizes saturated steam to rapidly and efficiently sterilize items. It is suitable for use in hospitals, public health centers, health clinics, industrial and mining medical facilities, and research institutes for the sterilization of medical instruments, surgical dressings, glassware, solutions, and culture media. Additionally, it can serve as a cooking appliance in high-altitude regions or be used by industrial and mining enterprises to produce high-quality drinking water.
| Technical Data | LPYX-18HDD | LPYX-24HDD |
| Sterilizing volume | 18L(280*260mm) | 24L(280*390mm) |
| Working pressure | 0.14-0.16MPa | |
| Working temperature | 126°C | |
| Temperature adjust range | 105-126°C | |
| Timer range | 0-99 min | |
| Max. safety pressure | 0.165Mpa | |
| Heat average | ≤±1°C | |
| Power | AC220V.50Hz / 2KW | |
| Dimension | 410*410*630 mm | 410*410*750 mm |
| G.W / N. W | 14/12 KG | 15/14 KG |

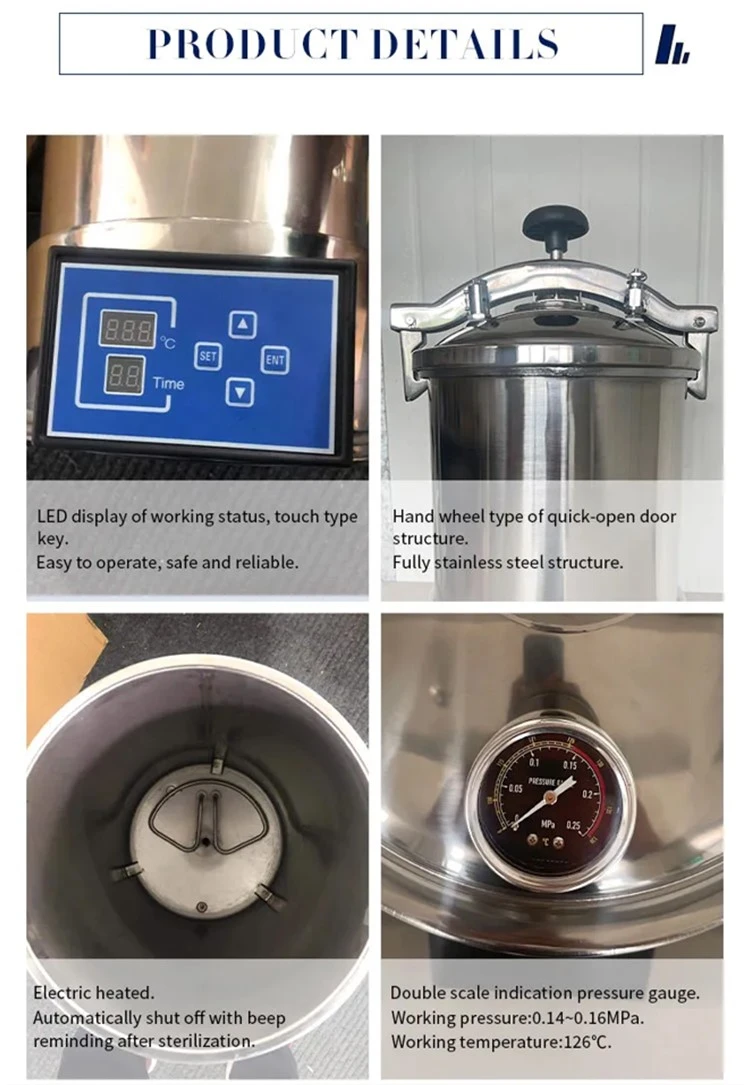

Features of the Small Autoclave Sterilizer
1.True portability-lightweight and compact for any countertop: The LPYX-HDD weighs only about 15 kg and has a small footprint, making it easy to transport between clinics, medical stations, or field sites. No fixed installation or complex plumbing is required-simply place it on a countertop, add water, and connect to a power source to begin operation.
2.Digital display panel-key parameters at a glance: Unlike traditional portable autoclaves equipped only with pressure gauges, the LPYX-HDD features a digital display that shows temperature, pressure, remaining time, low-water status, and system error codes in real time. There is no need to consult reference charts or guess whether the sterilization cycle is running correctly.
3.Handwheel-operated quick-opening door-tool-free, one-handed operation: The handwheel mechanism allows for the quick and safe opening and closing of the sterilization chamber without the need for wrenches or clamps. A self-sealing gasket ensures a reliable pressure seal, and the door can be opened quickly once pressure returns to normal, thereby accelerating instrument turnaround.
4.The digital display provides comprehensive safety monitoring: the PA-ND monitors water levels and system status in real time. If the water level drops too low, a low-water alarm triggers and heating stops, preventing damage caused by dry firing. In the event of a system malfunction, the corresponding fault code is displayed to facilitate rapid diagnosis and minimize downtime.
