Vertical Steam Sterilizer Autoclave Structure

Large Capacity: 35L to 150L, ideal for laboratory sterilization needs.
Stainless Steel Construction: Ensures durability and hygiene for long-term use.
High Temperature Sterilization: 134°C for effective sterilization of cans and materials.
Easy Setup: Compact design with automatic operation for hassle-free setup.
Widely Used: Suitable for food industry applications requiring high-capacity sterilization.
| Model | LPLS-LD Vertical Steam Sterilizer Autoclave |
| Chamber volume | 35 L-150 L |
| Working pressure | 0.22Mpa |
| Working temperature | 134ºC / 209°F |
| Max. working pressure | 0.23 Mpa |
| Heat average | ≤±1ºC |
| Timer range | 0~99min or 0-99hour 59min |
| Temperature adjust range | 105~134ºC |
| Power | 2.5-6KW |
| Voltage | AC220V |
| G.W/N.W | 61Kg-134Kg |
Vertical Steam Sterilizer Autoclave Details




1.Full Digital Display
Touch-screen operation with real-time temperature and pressure monitoring; operating cycles are precisely controlled by a microprocessor.
2.Six-Fold Safety Protection
Features include dry-boil protection, over-temperature protection, over-pressure protection, an automatic pressure relief valve, heater protection, and electrical safety safeguards.
3.Optional Drying System
Removes moisture after sterilization-suitable for wrapped loads and compliance with infection control standards.
4.Adjustable Temperature (105–134°C)
Suitable for various load types: liquids, solids, waste, and medical instruments. Timer duration is adjustable up to 99 hours and 59 minutes.
Why Choose us
Our Services: During the pre-sales phase, our team of experts recommends the most suitable products based on customer needs and provides comprehensive technical consultation. Throughout the sales process, we ensure timely delivery and provide guidance on installation and operation. In the post-sales stage, we offer long-term technical support, warranty services, and spare parts supply, helping customers maximize product performance and ensuring reliable maintenance throughout the product's lifecycle.
Our Service Processes
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of recei
5
>>
After-sale Services

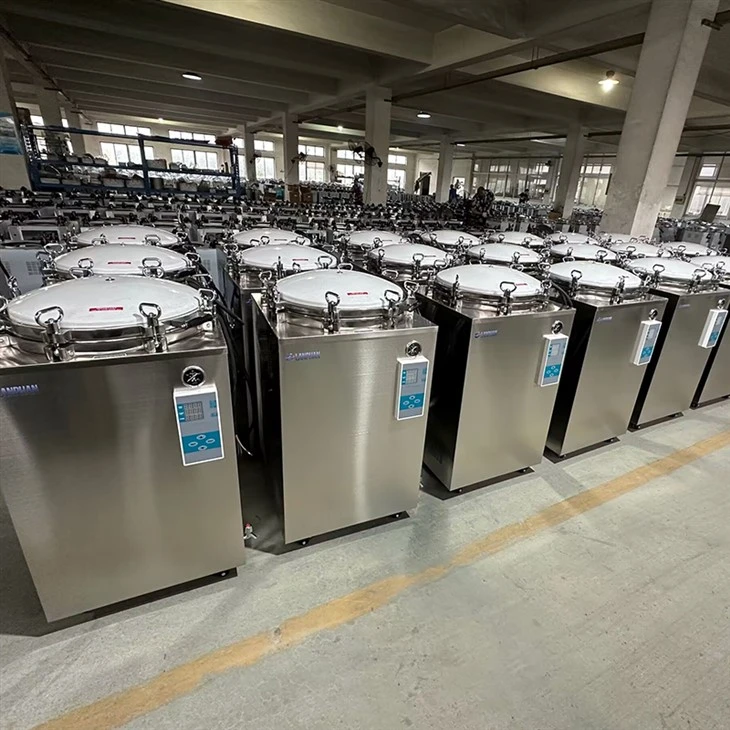

Vertical Steam Sterilizer Autoclave Factory
Henan Lanphan Industry Co., Ltd. is a specialized manufacturer of high-pressure vertical steam autoclaves for mushroom growers, food processors and laboratories. Our 35L-150L vertical autoclaves provide reliable steam sterilization at 105-134°C and 0.22MPa, ideal for mushroom substrate bags, canned food, culture media and lab instruments. With overseas warehouses in the US, plus one-year warranty and free spare parts, we help global customers run safe, efficient sterilization processes.

FAQ
Q: What are the available chamber volumes?
A: The sterilizer is available in five models with chamber volumes of 35L, 50L, 75L, 100L,150L.
Q: What certifications does the sterilizer have?
A: The product is CE certified, ensuring it meets necessary safety and quality standards.
Q: Where can this product be used?
A: Whether in a hospital or a private dental practice, the unit easily handles the daily sterilization of medical instruments, glassware, and surgical tools.
